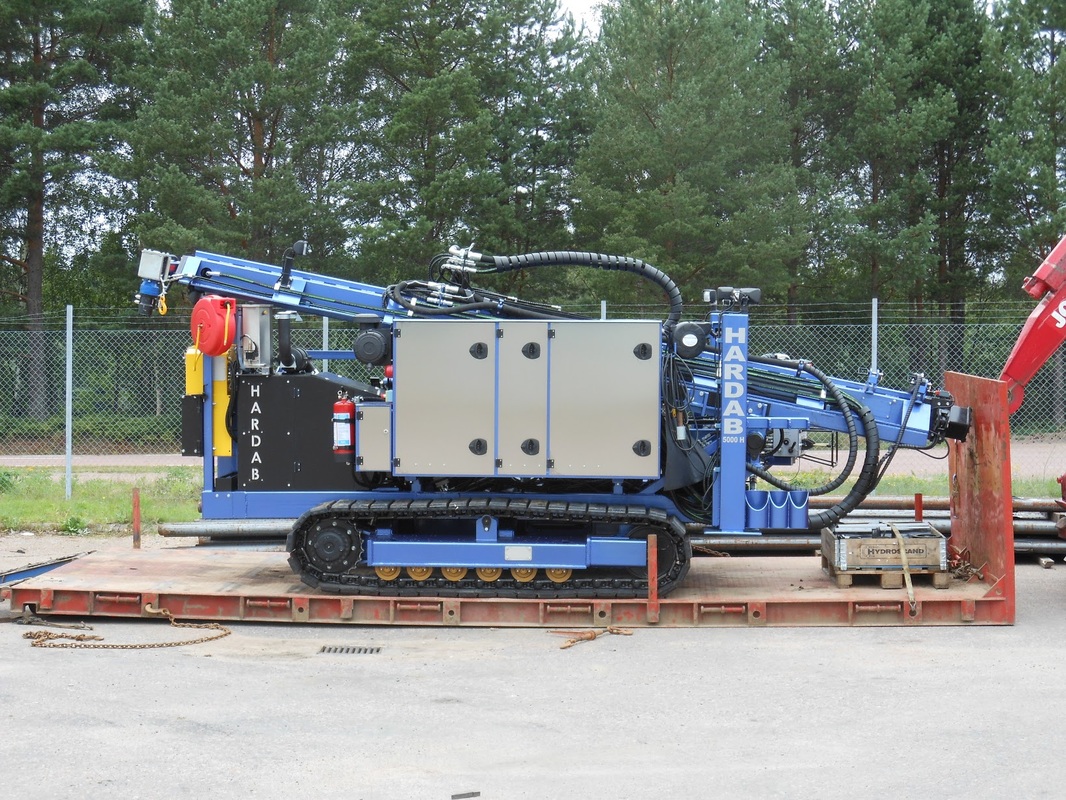

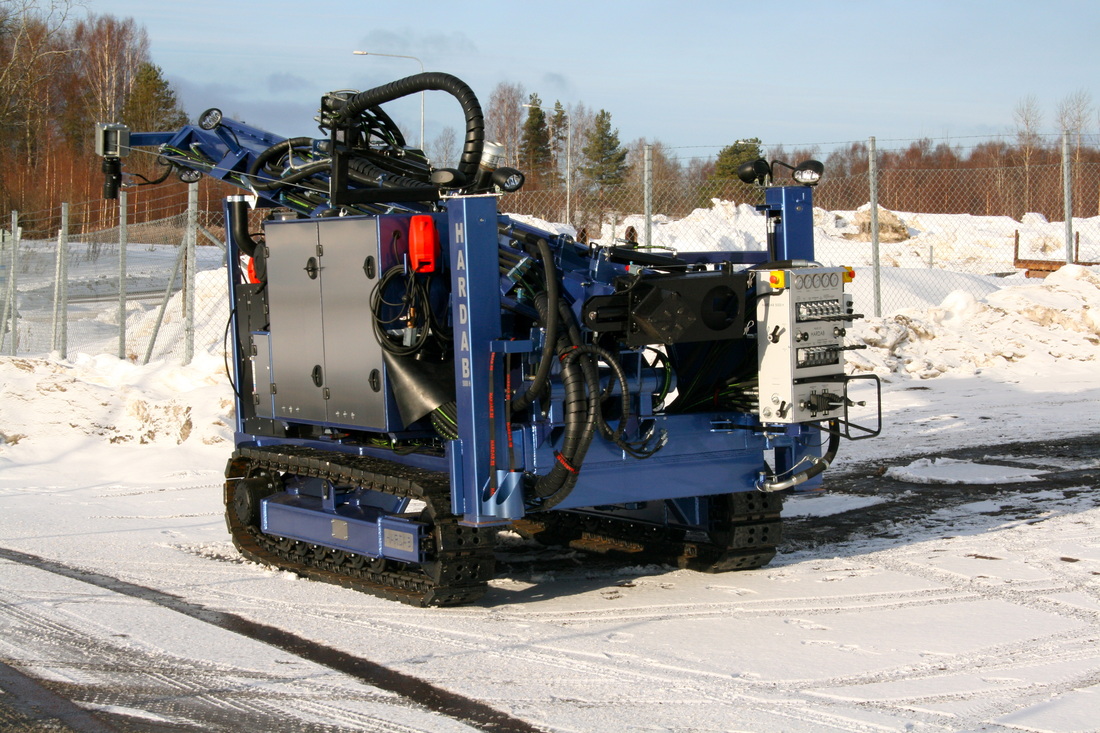

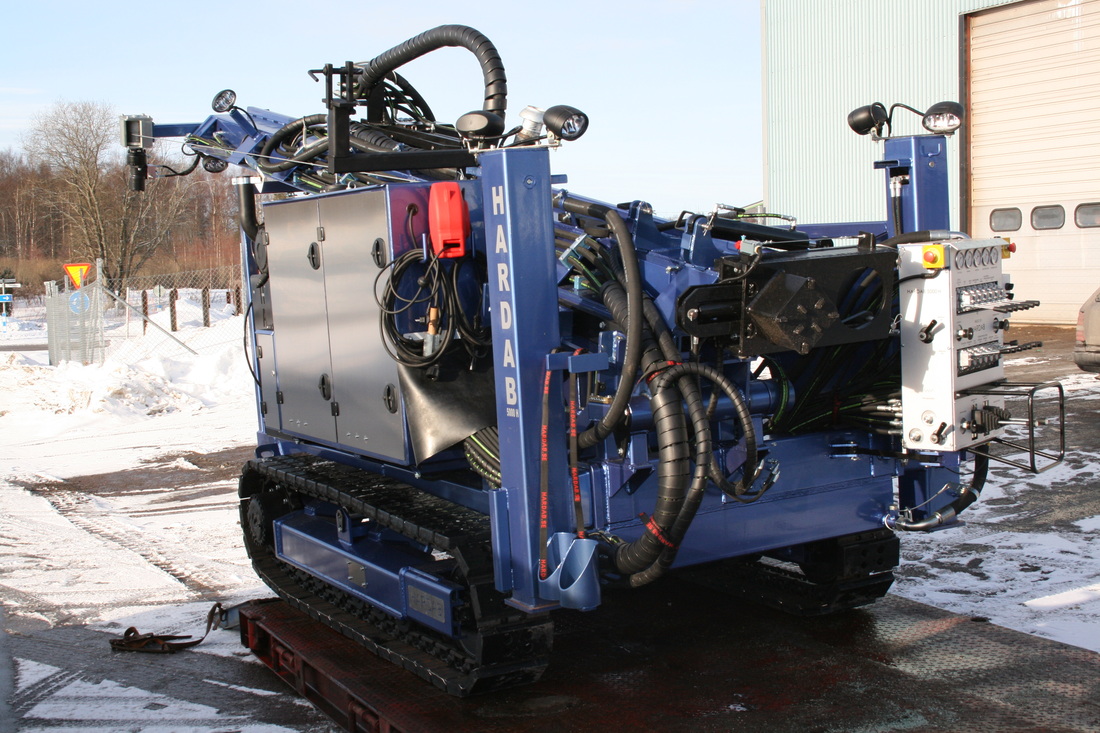

The HARDAB 5000 H can be mounted on steel track, rubberized steel tracks or a wheeled carrier driven hydraulically, and radio remote operated.

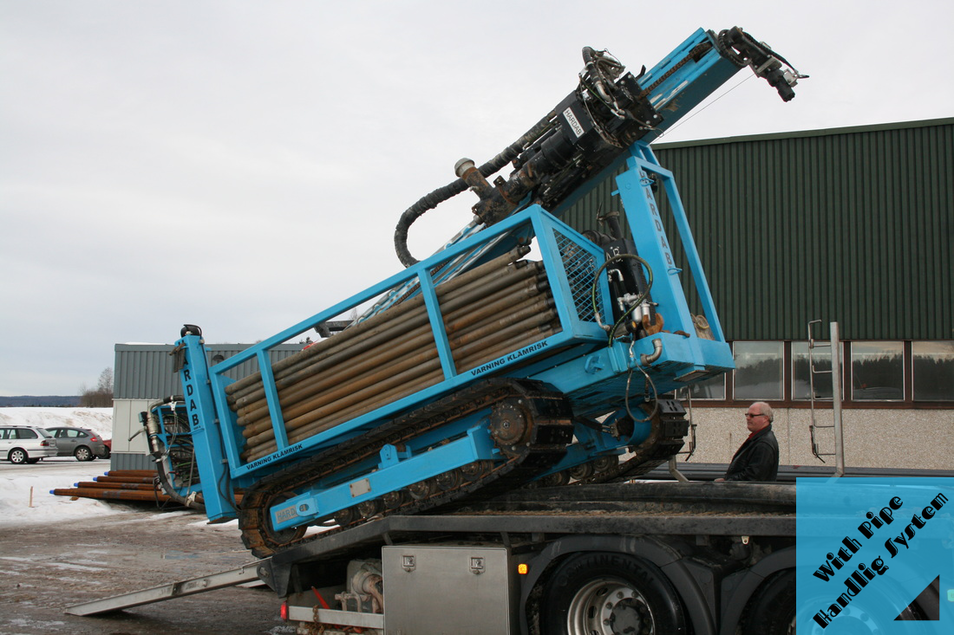

The 5000 H has a efficient hydraulic pipe handling system with a dump pipe basket (201 m / 670 ft capacity of 3.0” rods) incorporated onto the carrier

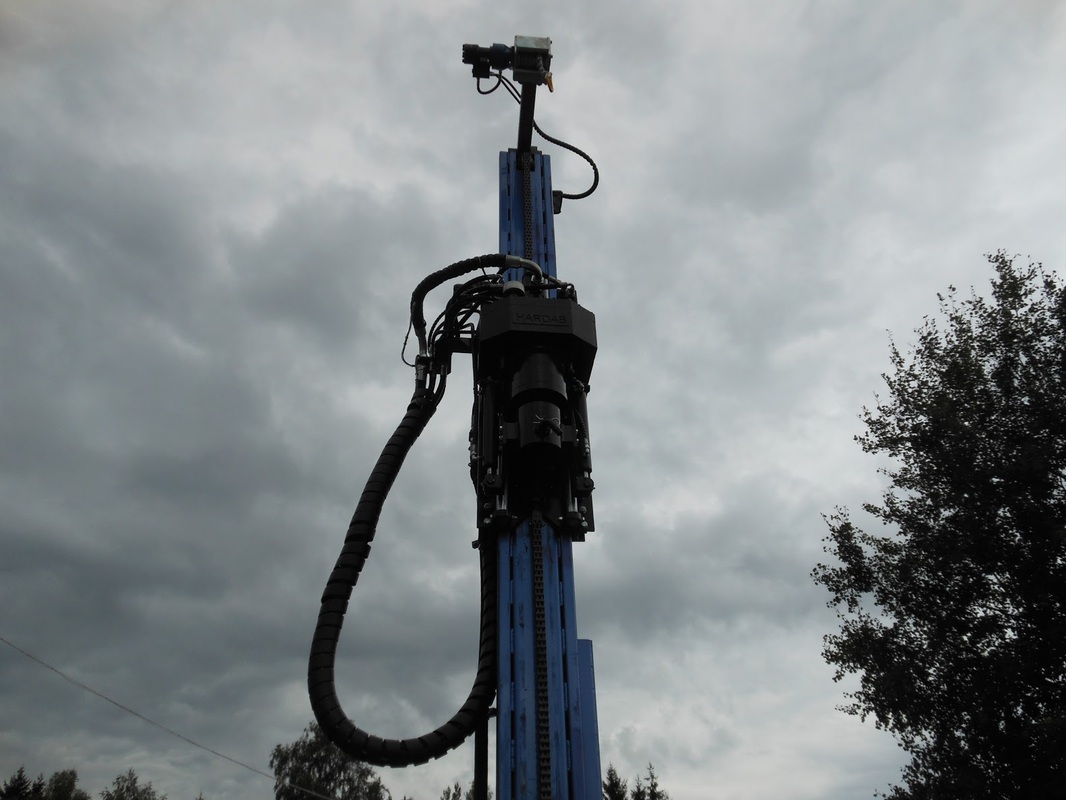

The high gear ratio rotation head provides a great torque at 90 rpm. Really effective for Down-the –hole or Rotary Tricone drilling

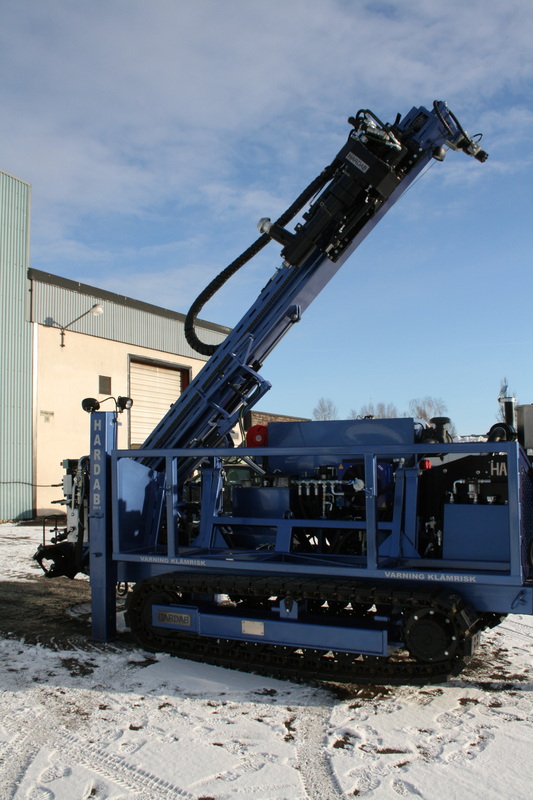

4 m / 13 ft stroke drilling mast for 10’ rods

The rig has a foot-clamp with pipe wrench for holding and breaking drill string

The 5000 Hs have seven (7) hydraulic oil filters including a water-absorbing filter to clean the hydraulic oil

High quality hydraulic components from manufacturers such as Parker and Sauer-Danfoss and experienced engineers plus adequate spare parts ready to provide you withe the best support ever.

Caractéristiques techniques :

Rotary Head Torque : 4280 Nm
Rotary Head Speed : 0 – 90 RPM
Diesel Engine Power : 74 kW
Total Length : 4800 mm
Total Width : 2270 mm
Total Height : 2500 mm
Weight Including Drillpipes : 8900 kg
Drill Pipe Storage (3 Meters) : 201 meters or 67 pcs
Quick Feed : 0,7 m/s
Feed Force : 25 kN
Pull Force : 50 kN
Max Total Hydraulic Oil Flow : 340 L/min
