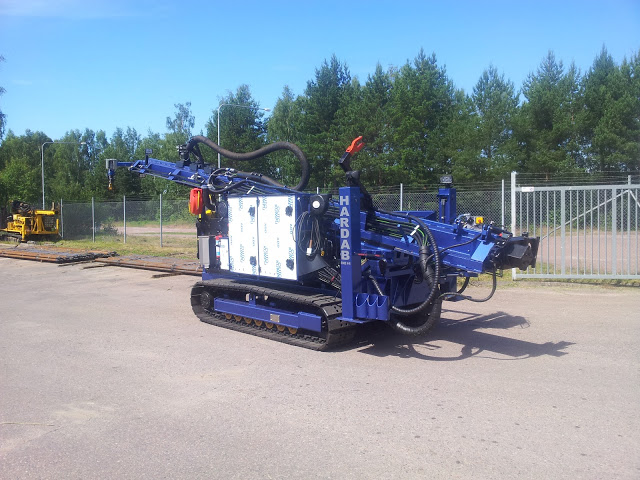

The HARDAB 5000 H-6 can be mounted on steel track, rubberized steel tracks or a wheeled carrier driven hydraulically, and radio remote operated.

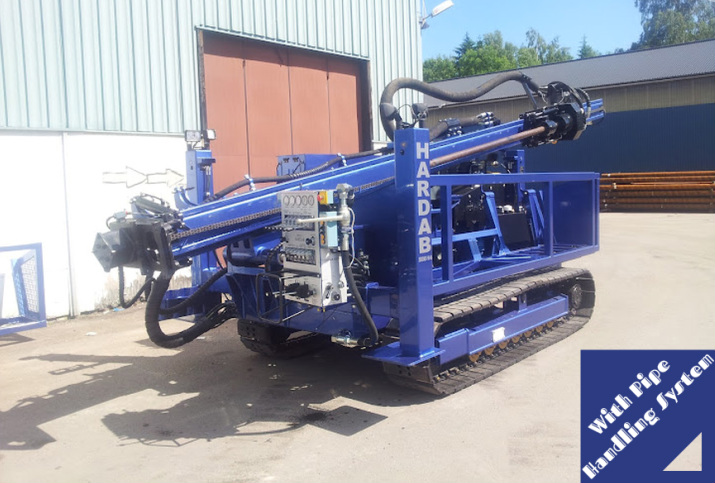

The 5000 H-6 has a efficient hydraulic pipe handling system with a dump pipe basket (201 m / 670 ft capacity of 3.0” rods) incorporated onto the carrier, that pipe basket is expandable and can transform in to a 6 meter when needed but when using 3 meter pipes it can be transform back to 3 meter for transportation.

The high gear ratio rotation head provides a great torque at 90 rpm. Really effective for Down-the –hole or Rotary Tricone drilling

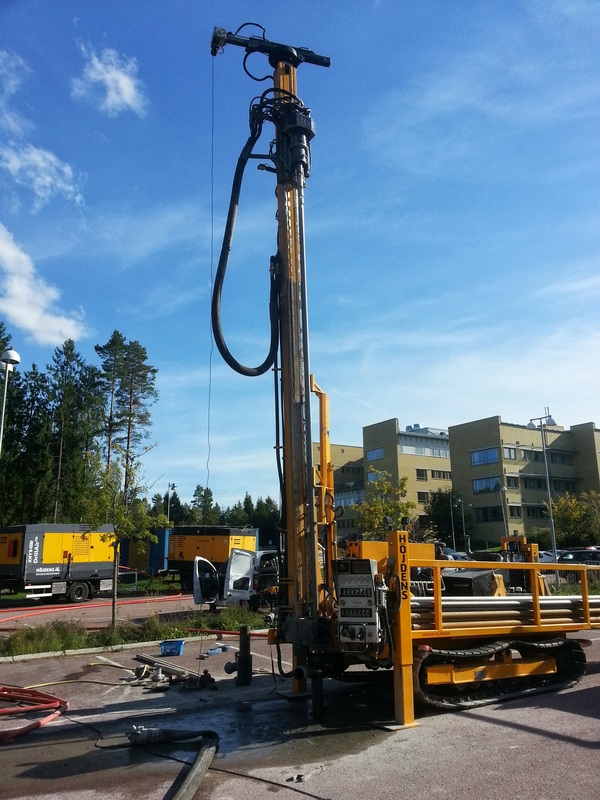

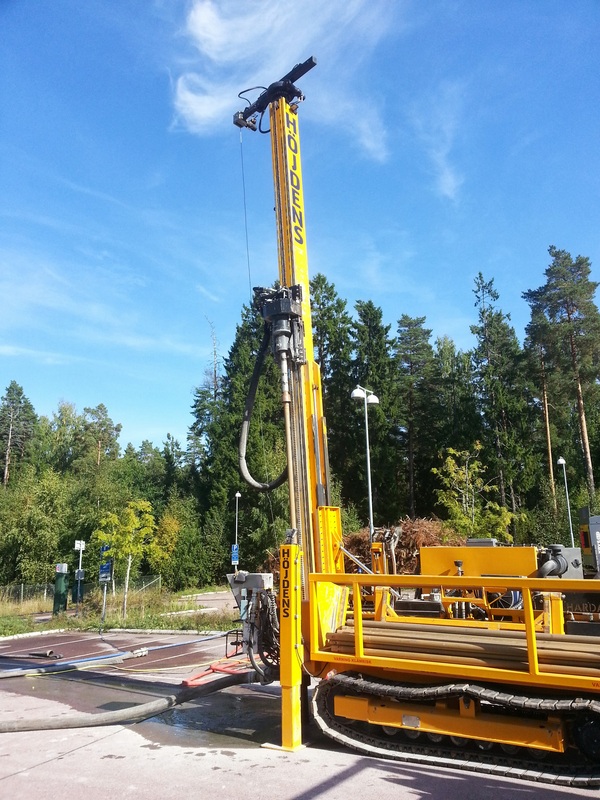

4 m / 13 ft stroke drilling mast for 10’ rods

The rig has a foot-clamp with pipe wrench for holding and breaking drill string

The 5000 H-6 have seven (7) hydraulic oil filters including a water-absorbing filter to clean the hydraulic oil

The drill rig have high quality hydraulic components from manufacturers such as Parker and Sauer-Danfoss and experienced engineers plus adequate spare parts ready to provide you withe the best support ever.

Caractéristiques techniques

Rotary Head Tourqe: 5580 Nm
Rotary Head Speed: 0 – 85 RPM optional 125
Diesel Engine Power: 74 kW
Total Length: 9200 mm
Total Width: 2240 mm
Total Height: 2950 mm
Weight Excluding Drillpipes: 9800 kg
Drill Pipe Storage: (3 Meters): 201 meters or 67 pcs
Quick Feed: 0,6 m/s
Feed Force: 35 kN
Pull Back Force: 50 kN
Max Total Hydraulic Oil Flow: 375 L/min
